Horn Type Flange Radar Level Transmitter 6g For Liquid

Name: Horn Type Flange Radar Level Transmitter 6g For Liquid
Brand: NUOYINGJIAYE
Price: 1 USD

Brand Name : NUOYINGJIAYE

Model Number : NYRD-803

Certification : CE

Place of Origin : Xi'an, Shaanxi,China

MOQ : 1 pcs

Price : Please Contact Me

Payment Terms : T/T

Supply Ability : 1000 pcs/ pre month

Delivery Time : 7-15 working days

Packaging Details : Carton, 40cm×30cm×30cm

Typical application : Liquid

Product model : NYRD-803

Antenna material : 304，

Signal output : Modbus

Echo sampling : 55 times /s

Measurement range : 20m(optional)

Process connection : flange,(optional)

Electrical interface : M20×1.5(optional)

Contact Now

Flange Intelligent Horn Type 6g Radar Level Meter Echo Discovery

6g Radar Level Meter Working Principle

The antenna receives the reflected microwave pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the surface of the material. The correct echo signal identification is completed by the pulse software, and the accuracy can reach the millimeter level. The distance D from the material surface is proportional to the time travel T of the pulse:

D=C×T/2, where C is the speed of light

Since the distance E of the empty tank is known, the object position L is: L= E-D

6g Radar Level Meter Technical Parameter

Typical application	Liquid dust with simple process (dielectric constant >1.8, guided wave tube type with stirring)
	Strong dust (can be equipped with purging or dust cover)
	Solid (small particles, pebbles, sand and other media)
Product model	NYRD803
Antenna form	Bar type, horn type, still-pipe
Antenna material	PTFE,304,316
Echo sampling	55 times /s
Measurement range	20m, 35 m
Measurement accuracy	0.05% ~ 0.1% F.S

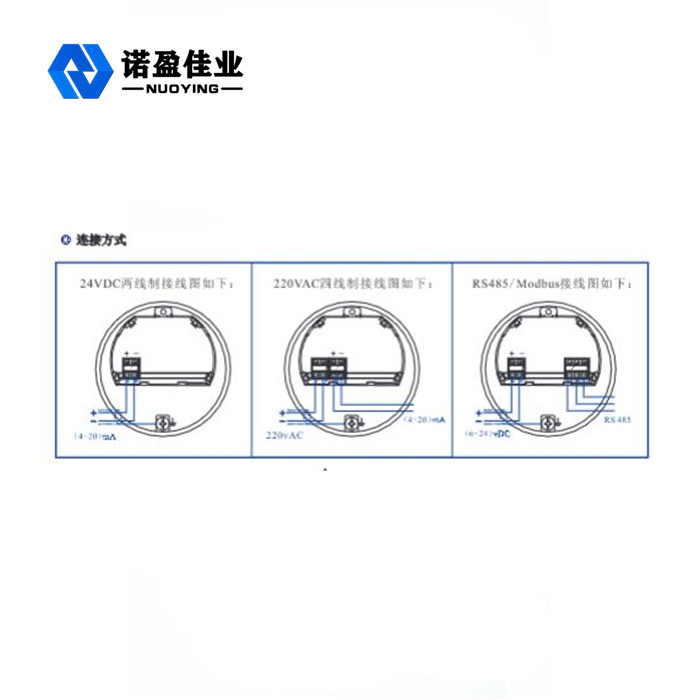

Power supply	24VDC(two wire, four wire), 220VAC
Signal output	4... 20mA/HART/RS485/Modbus...
Process temperature	-40~ +130°C,-40~ +250 °C
Process pressure	-0.1~0.3MPa, -0.1~2.0MPa,-0.1~4.0MPa
Process connection	Thread, bracket, flange,(optional)
Electrical interface	M20×1.5 , ½ " NPT
Protection grade	IP 65,IP 67,IP 68 (optional)
Explosion-proof grade	ExiaIICT6Ga, ExdIICT6Gb(see certificate for details)

※Note:The product can be customized according to the specific requirements of users.
