High Stability And Reliability RF Capacitance Liquid Level Meter For Various Liquid Applications
Multiple Probe Types And Materials RF Capacitance Liquid Level Meter Easy To Be Installed Operating Principle
Based on RF capacitance technology. Apply a radio frequency to the probe, determine the affects of the surrounding environment through continuous analysis. Because each material has its own dielectric constant, and they are different from the air’s conductivity. When the probe contacts the material, the total impedance reflected by the small capacitance shift changes. Because the energized probe and the container wall form together like a capacitor, the probe insulator and the surrounding air become dielectric materials. When the air (dielectric constant is 1.0) is replaced by other material (dielectric constant>1.0), the change of capacitance value changes the impedance. This effect is measured by the circuit and then compared with the reference data established by the sensitivity setting (circuit).
Further more, by adding Driving-Shield and chopper circuit in RF Admittance tech, it can actualize separate measurement of impedance and capacitance. In this way, RF Admittance Level Meter can avoid being misguiding by hanging material affects during measurement process. That ensures the measuring accuracy.
RF Capacitance Liquid Level Meter Design Feature
★ Integrated modular converter and sensor, no moving parts, high reliability and strong anti-interference ability
★ Wider applicability, with multiple probe forms, multiple process connection forms, and multiple fabrication materials, also can be customized
★ Easy to Install and debug, convenient to maintain.
RF Capacitance Liquid Level Meter Technical Parameter
| Typical Application | Liquid, Specially for Stronge Corrosive Liquid |
| Product Model | NYDR-3051 |
| Antenna Type | Soft Cable, Hard Rod. |
| Antenna Material | PTFE, 304, 316 |
| Measuring Range | 6m, 20m |
| Time Delay | 0~30s continuous Adjustable |
| Process Temperature | -184 ~ +260°C |
| Process Pressure | -0.1 ~ 1.6MPa |
| Process Connection | Thread, Flange |
| Electrical Interface | M20 x 1.5, 1/2" NPT |
| Supply Power | 24VDC |
| Signal Output | 4-20 mA /HART/RS485/Modbus |
| Protection Grade | IP65, IP67, IP68(optional) |
| Explosion-proof Grade | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |

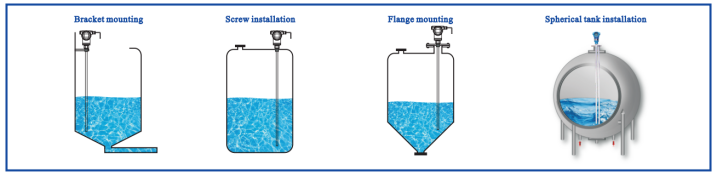

RF Capacitance Liquid Level Meter Product Application

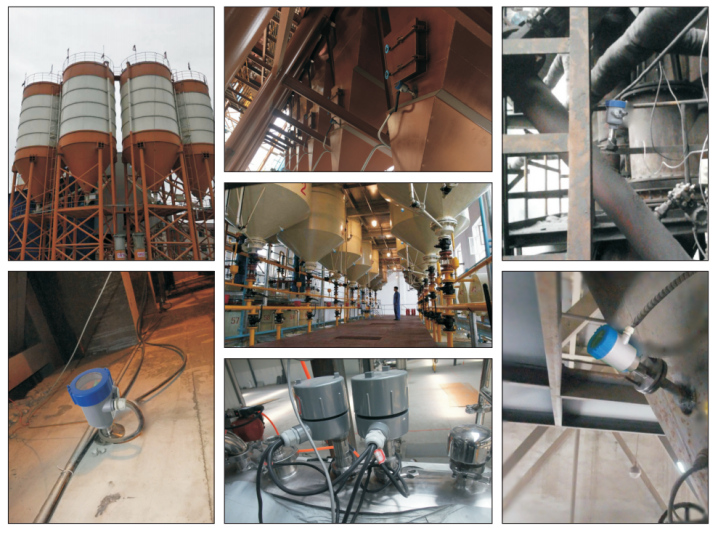

Capacitive level meter can be used for continuous level measurement ofalmost all strong, weak, or non corrosive media in open or pressure vessels. Widely used in: Petroleum,Chemical,Fertilizer, Metallurgy, Natural Gas, Power Plant, Machinery ,Manufacturing, Pharmaceutical Factory, Sewage Treatment, Food and other industrial occasions of liquid level detection and control.
Product Tags:
|
|

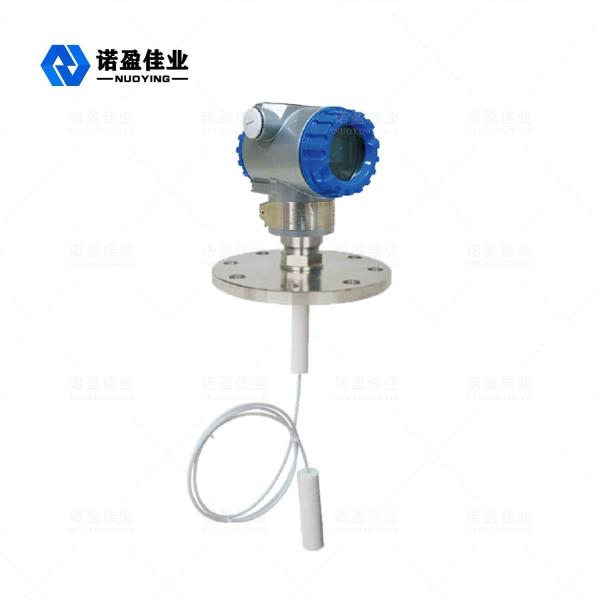

Thread Flange RF Capacitance Liquid Level Meter 6m 20m Images
|
