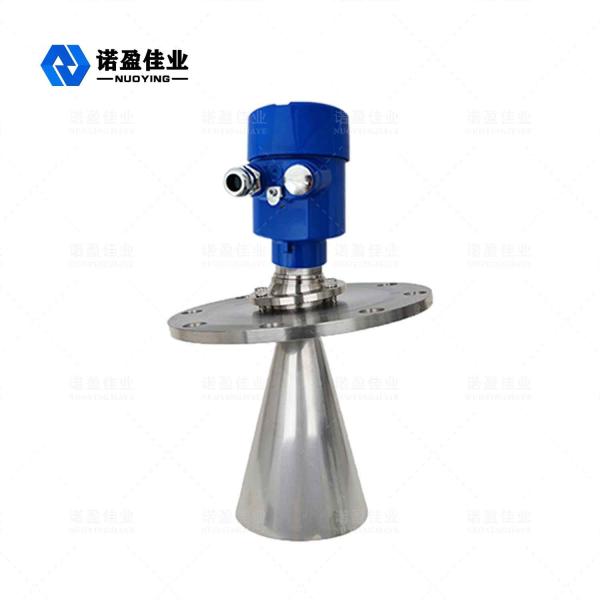

Universal Flange 316L Radar Level Transmitter For Solids 6G NYRD804

  • 1
  • 2

Brand Name : NUOYINGJIAYE

Model Number : NYRD804

Certification : CE,ATEX,SIL

Place of Origin : Xi'an,Shannxi,China

MOQ : 1pcs

Price : $950~$1250/pcs

Payment Terms : T/T

Supply Ability : 500 pcs/per month

Delivery Time : 7 working days

Packaging Details : Carton, 90cm x 30cm x 30cm

Antenna material : 316L(optional)

Measuring range : 35m

Measuring accuracy : 0.05%-0.1%F.S

Medium temperature : -40℃~+250℃

Process pressure : -0.1~4.0MPa

Protection level : IP67

Explosion-proof grade : Exia II CT6

Signal output : 4...20mA/HART/RS485/Modbus...

Contact Now

Universal Flange 6G NYRD804 Radar Level Transmitter Stable And Precise Measurements

Universal Flange 6G NYRD804 Radar Level Transmitter

How it works: Antenna size is small, easy to install.Very short microwave pulses with very low energy are transmitted and received through an antenna system. Radar waves travel at the speed of light. The operating time can be converted into a level signal by means of electronic components. Hardly affected by corrosion and foam;A special time extension method ensures stable and precise measurements in a very short period of time.Even if the working conditions are more complicated and there are false echoes, the echoes of the material level can be accurately analyzed with the latest micro processing technology and debugging software.

Universal Flange 6G NYRD804 Radar Level Transmitter Techincal Parameters

Typical application Solids, particles and strong dust.
Antenna material 316L(optional)
Measuring range 35m
Measuring accuracy 0.05%-0.1%F.S
Power supply 24VDC(Two lines, four lines),220VAC
Medium temperature -40℃~+250℃
Process connection bracket, flange(optional)
Process pressure -0.1~4.0MPa
Protection level IP67
Explosion-proof grade Exia II CT6
Signal output 4...20mA/HART/RS485/Modbus...

Note: Products can be customized according to the specific requirements of users.
