Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter

Name: Hot Sale NUOYING 420mA NYSPZ18 Rf Admittance Capacitive Level Meter
Brand: NUOYING
Price: 219 USD

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter Manufactures

Brand Name : NUOYING

Model Number : NYSP-Z18

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $219 to $269/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Typical application : insulating solids, insulating liquids

Measuring accuracy : 0.05%~0.1%F.S

Power supply : 24VDC

Process connection : 1" BSPT thread(standard),flange mounting(optional)

Medium temperature : -40~+200℃

Process pressure : -0.1~8.0MPa

Signal output : 4...20mA/HART/RS485/Modbus...

Protection grade : IP 65 ,IP 67 ,IP 68(optional)

Contact Now

Hot Sale NUOYING 4-20ma NYSP-Z18 Rf Admittance Capacitive Level Meter

Nuoying NYRD-Z18 Radio Frequency Admittance Level Meter Overview

Products Description

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter

NYSP-Z18 RF Admittance Level Transmitter Design Feature

1. Anti-hanging material: The unique drive shielding circuit design improves the performance of the anti-hanging material.
2. Power supply range: power supply operating range: 13 ~ 35VDC.
3. Adaptability: Probe process temperature: -100 ℃ ~ 800 ℃; no dead zone measurement, can be used in horizontal measurement occasions of more than ten centimeters or even a few centimeters, with a large measurement range;the maximum measurement range of up to hundreds of meters, or even hundreds of meters; viscous material interface measurement is the great advantage of the instrument.
4. Stability: The output is stable and reliable, and it is resistant to the influence of fly ash, blanking, water vapor,
crystallization and waxing.
5. Maintenance-free: no moving, no easy-to-wear parts, no need for frequent cleaning, maintenance, commissioning.

Product Parameters

Typical application	Conductive liquid, interface, split mountable
Probe type	Insulated flexible cable PTFE (optional)
Measuring accuracy	0.05%-0.1%F.S
Power supply	24VDC(Two lines, four lines)
Medium temperature	-40~+200℃
Process connection1	1" BSPT thread (standard) flange mounting (optional)
Process pressure	0.1~8.0MPa
Explosion-proof grade	Exia II CT6(optional)

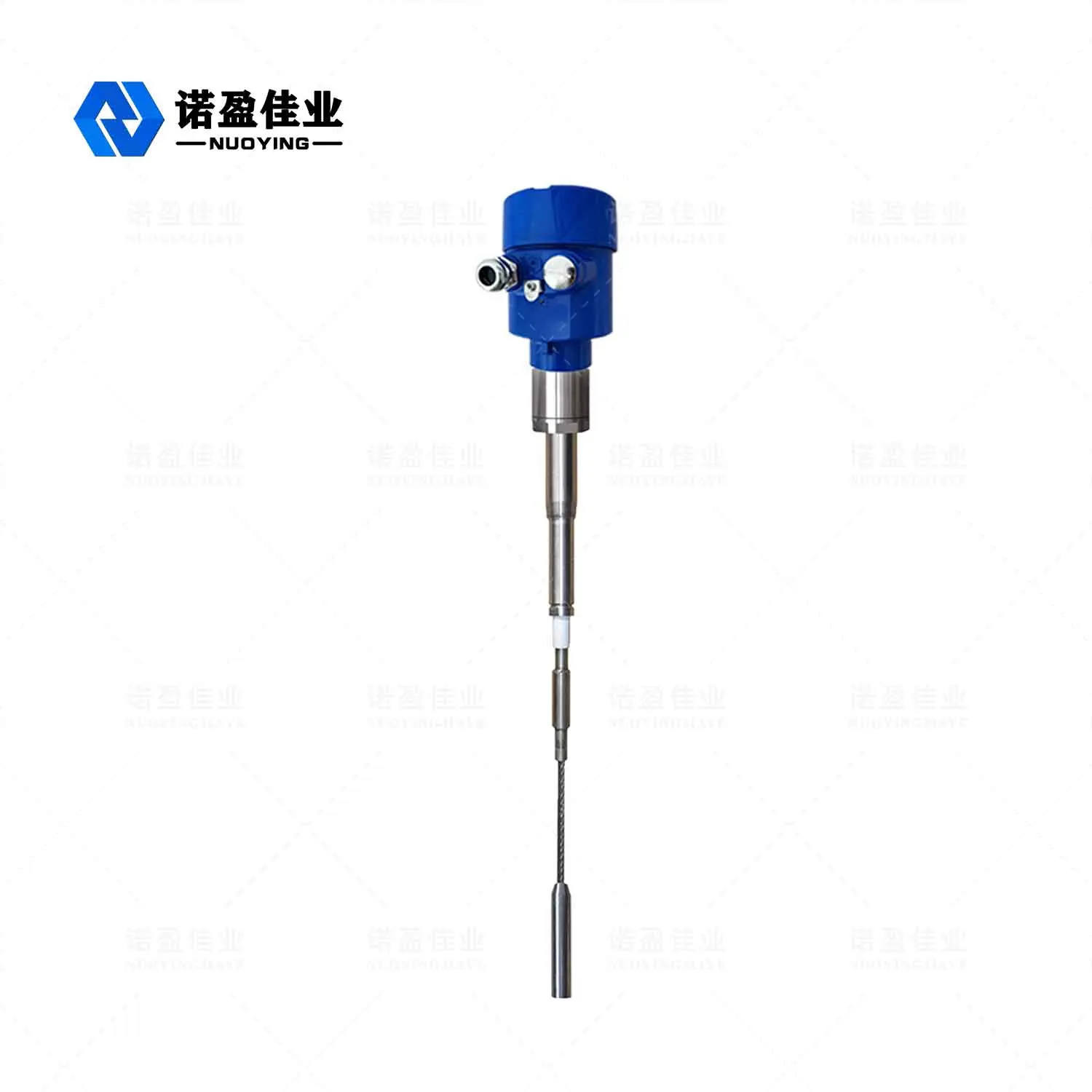

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter Images
